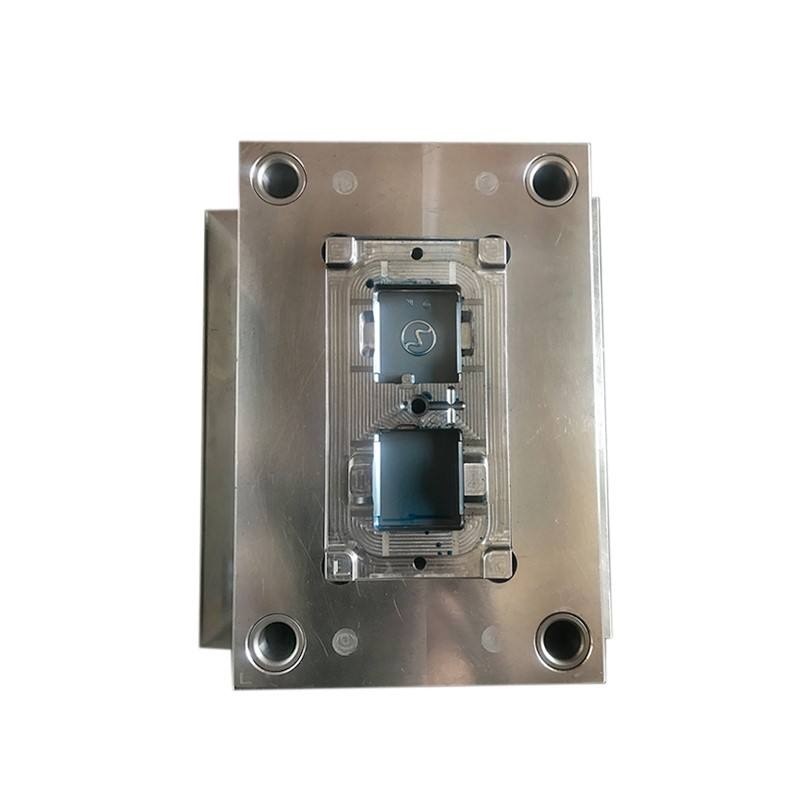

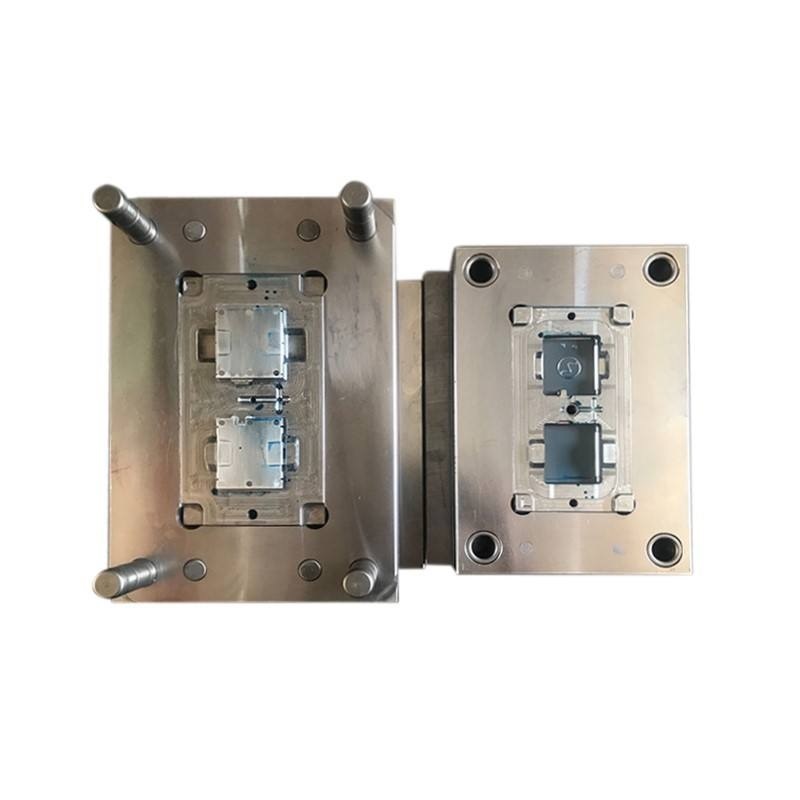

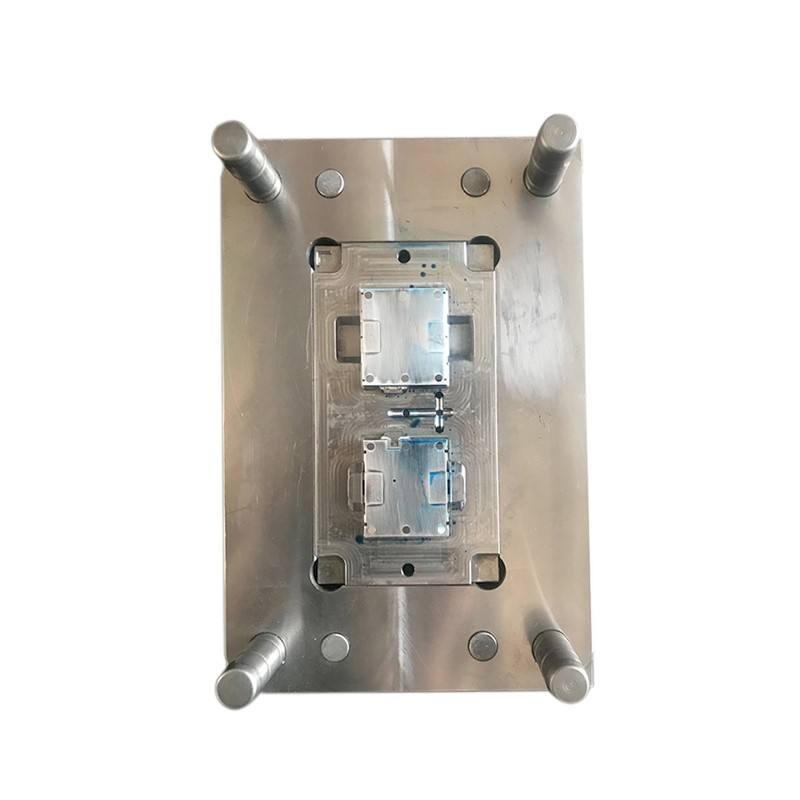

Custom Plastic Injection High Precision Mold Parts Plastic Mould Injection Molding Manufacturer

High Precision Mold Description

As a specialized manufacturer of custom plastic injection high precision mold parts, we deliver exceptional tooling solutions for complex injection molding applications. Our comprehensive capabilities encompass precision mold design, advanced CNC machining, and meticulous quality control—ensuring each mold component meets exacting specifications for dimensional accuracy, surface finish, and durability. From intricate core pins and cavity inserts to complete mold bases and slider systems, we produce components that enable flawless plastic part production across diverse industries. Partnering with clients from prototype development to high-volume manufacturing, our experienced engineering team provides technical expertise, design optimization, and reliable lead times. Whether you require replacement mold parts, custom components for existing tooling, or complete turnkey mold solutions, our precision manufacturing services ensure consistent performance and extended tool life.

High Precision Mold Features

• Engineering With Accuracy and Stability Dimensional
• Easily Assembled and Disassembled;
• Low maintenance
• Longer life
• Fine finish
• High strength
• Rugged design
• Durable nature

Manufacture Process

1. Review the part design,drawings and quality standard from clients.
2. Mould and Tooling design & manufacturing
3. Mould and Tooling testing & confirm the sample
4. Die casting raw castings
5. Surface treatment: Trimming,Deburring, polishing, cleaning, passivation & power coating and other requirement from Customer
6. Precision machining: CNC lathes, milling, drilling, grinding etc
7. Full Inspection
8. Packing
9. Delivery

Our Service

• High Precision Machining Capabilities: State-of-the-art CNC equipment including 5-axis machining, EDM, wire EDM, and jig grinding achieve tolerances as tight as ±0.002mm for critical mold components

• Premium Material Selection: Wide range of tool steels (H13, S136, 420SS, P20, NAK80) and pre-hardened materials with optional heat treatment, nitriding, and PVD coatings for enhanced wear resistance

• Complex Geometry Expertise: Advanced CAD/CAM programming enables production of intricate shapes, fine details, deep ribs, and undercut features essential for modern plastic part designs

• Rigorous Quality Inspection: Comprehensive quality control using CMM, optical comparators, surface roughness testers, and hardness testers ensures every component meets specifications

• Custom Design & Engineering Support: In-house engineering team provides DFM feedback, material recommendations, and design optimization to improve part quality and mold longevity

Applications:

1. Injection Mold Cores & Cavities: Precision-machined mold inserts that define part geometry, available with texturing, polishing, or EDM finishes for specific surface requirements

2. Slider & Lifter Systems: Complex moving components for undercut release, manufactured with precise fit and wear-resistant coatings for reliable long-term performance

3. Cooling System Components: Baffles, bubbles, thermal pins, and connector components designed for efficient heat transfer and uniform mold temperature control

4. Ejection Mechanism Parts: Ejector pins, return pins, sleeves, and blades manufactured to tight tolerances for smooth, reliable part ejection cycle after cycle

5. Mold Base Components & Hardware: Precision guide pins, bushings, sprue bushings, and locating rings ensuring accurate alignment and repeatable mold closure

Our Advantages

1. We are the biggest lost foam mould manufacturer in China, we focus on high challenge lost foam mould and we have large gantry machining centers,30 sets imported high speed machining center,more than 40 sets general machine tool equipment;
2. We have 36 senior mould designers, to ensure reasonable / safety / high efficiency mould design and ensure the fast mould delivery and rational mould structure, make the process more safer and the production efficiency more higher;
3. We using numerical control machine tool to manufacture the mould cavities, to ensure a even thickness ;
4. We using ZL104 Aluminium to casting the mould, to manufacture a high strength mould;
5. For the big mould, we using Ø22*1 copper tube as cooling pipe, with water spray system, to get a nice cooling effect;
6. We Have (TEF10N) coating on the mould surface, it can reduce the friction, anti water/static electricity/acid-base/high-temperature, with this we can ensure the pattern has smooth surface without distrotion, and easy to demould;
7. All the screws we using stainless steel screw, easy to disassemble during maintenance;

Company profile

Luoyang Liushi mould Co., Ltd was established on 2001, which is National Standard Setting Unit for Lost Foam Casting Mould. The company is located in the Millennium Emperor, peony flower city of Luoyang City. We have 9800 office building, and 22000 workshop, which is well equipped with research, development, design, foundry, machining, assembly, surface treatment and other equipment. It′s a Luoyang municipal R&D center and technology center.


Company technicians can provide on-site guide mould assembly, test production, free repair and complete technology for lost foam casting proecss according to customer demands. With the business philosophy of "careful design, lean manufacture, best service, perfect quality", we strive to provide satisfactory products and services for customers. After years of development, our company has become the preferred mould suppliers of many lost foam casting manufacturers and the exclusive supplier.
