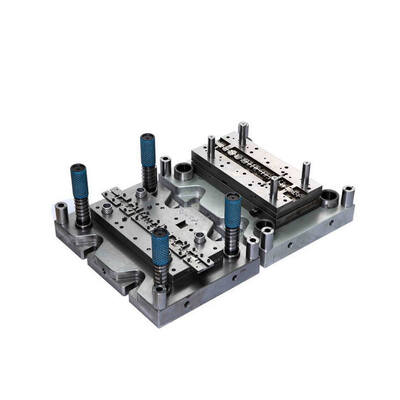

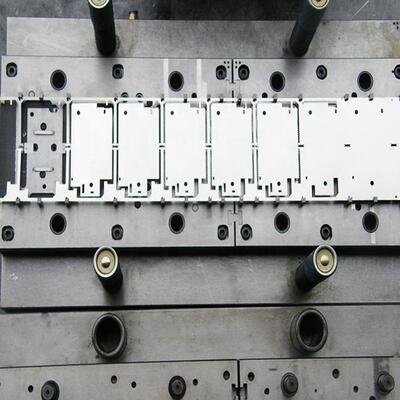

Grade Drawing Dies for Bolt Making Coin Stamping Mold Auto Parts Mould Metal Stamp Die Motion Sensor

Grade Drawing Dies for Bolt Making Coin Stamping Mold Auto Parts Mould Metal Stamp Die Motion Sensor

We specialize in the design and manufacture of high-efficiency, multi-cavitation Auto Parts Moulds engineered for the mass production of small to medium-sized automotive components. Our focus is on maximizing productivity and minimizing unit cost through intelligent tooling design that optimizes every aspect of the injection moulding cycle. These moulds are built for relentless performance, delivering millions of identical parts with unwavering quality, making them the cornerstone of cost-effective supply for high-volume automotive programs.

Features

• • High-Cavitation Layout Expertise: Designs with 8, 16, 32, or more cavities, expertly balanced for uniform filling and packing pressure to ensure consistent part weight, dimensions, and properties across all cavities.
  • Hot Runner System Integration: Proficient in selecting and integrating premium, energy-efficient hot runner systems (valve-gate or thermal-gate) to eliminate cold runner waste, reduce cycle times, and allow full automation.
  • Rapid Cycle Time Engineering: Every element, from runner design and gate geometry to cooling channel layout and ejection strategy, is optimized for the shortest possible cycle time, directly increasing your production output and capacity.
  • Quick-Change Component Design: Incorporates standardized, tool-less quick-change systems for wear items like gates, inserts, or small cores, minimizing press downtime for maintenance and changeovers.

Specification

Our Factory

Welcome to visit our factory, we always welcome your arrival

Manufacture Process

1. Review the part design,drawings and quality standard from clients.
2. Mould and Tooling design & manufacturing
3. Mould and Tooling testing & confirm the sample
4. Die casting raw castings
5. Surface treatment: Trimming,Deburring, polishing, cleaning, passivation & power coating and other requirement from Customer
6. Precision machining: CNC lathes, milling, drilling, grinding etc
7. Full Inspection
8. Packing
9. Delivery

Application
These high-productivity moulds are the ideal solution for manufacturing vast quantities of small, standardized automotive parts. This includes an extensive range of components such as electrical connectors, cable grommets, assorted clips and fasteners, fluid line connectors, switch components, sensor housings, and countless other "commodity" plastic parts used throughout a modern vehicle's architecture.

Our Advantages

1. We are the one of  the biggest lost foam mould manufacturer in China, we focus on high challenge lost foam mould and we have large gantry machining centers,30 sets imported high speed machining center,more than 40 sets general machine tool equipment;
2. We have 36 senior mould designers, to ensure reasonable / safety / high efficiency mould design and ensure the fast mould delivery and rational mould structure, make the process more safer and the production efficiency more higher;
3. We using numerical control machine tool to manufacture the mould cavities, to ensure a even thickness ;
4. We using ZL104 Aluminium to casting the mould, to manufacture a high strength mould;
5. For the big mould, we using Ø22*1 copper tube as cooling pipe, with water spray system, to get a nice cooling effect;
6. We Have (TEF10N) coating on the mould surface, it can reduce the friction, anti water/static electricity/acid-base/high-temperature, with this we can ensure the pattern has smooth surface without distrotion, and easy to demould;
7. All the screws we using stainless steel screw, easy to disassemble during maintenance;
8. For the big mould chest, we using 18-20mm thick wrought aluminium plate, to offer high strenght cavity ;
9. For the complex mould which is difficult to demould, we can manufacture the automaitc mould with take out device ;
10. We produce the pattern sample to customer after finish the mould, when the pattern was qualified, then we do exceptance job for the mould ;
11. We have the Hexagon coordinate measuring instrument imported from the Switzerland to have a test make sure our mould qualified.

Company profile

Luoyang Liushi mould Co., Ltd was established on 2001, which is National Standard Setting Unit for Lost Foam Casting Mould. The company is located in the Millennium Emperor, peony flower city of Luoyang City. We have 9800 office building, and 22000 workshop, which is well equipped with research, development, design, foundry, machining, assembly, surface treatment and other equipment. It′s a Luoyang municipal R&D center and technology center.


Company technicians can provide on-site guide mould assembly, test production, free repair and complete technology for lost foam casting proecss according to customer demands. With the business philosophy of "careful design, lean manufacture, best service, perfect quality", we strive to provide satisfactory products and services for customers. After years of development, our company has become the preferred mould suppliers of many lost foam casting manufacturers and the exclusive supplier.

Why Choose Us

• Production Volume Specialists: Our entire process is streamlined for high-cavitation tooling projects, from design and steel procurement to machining and try-out, ensuring we deliver these complex tools efficiently and reliably.

• Strategic Partnership with Hot Runner Suppliers: We have strong alliances with leading hot runner manufacturers, allowing us to source optimal systems at competitive prices and integrate them seamlessly for peak performance.

• Focus on Your Cost-Per-Part: We view the mould as a system for part production. Our primary goal is to design and build a tool that delivers the lowest possible cost-per-part over its lifetime, considering material usage, cycle time, and maintenance costs.

• Dedicated High-Volume Project Teams: For large-scale projects, we assign a dedicated cross-functional team that manages your tooling program with a focus on scalability, timing, and seamless ramp-up to full production volumes.
